Origami - platform lift for stage access

What a platform lift!

Italian design and production

Origami is a platform lift created to make the stands accessible without obstructing the view of the audience in the stalls area.

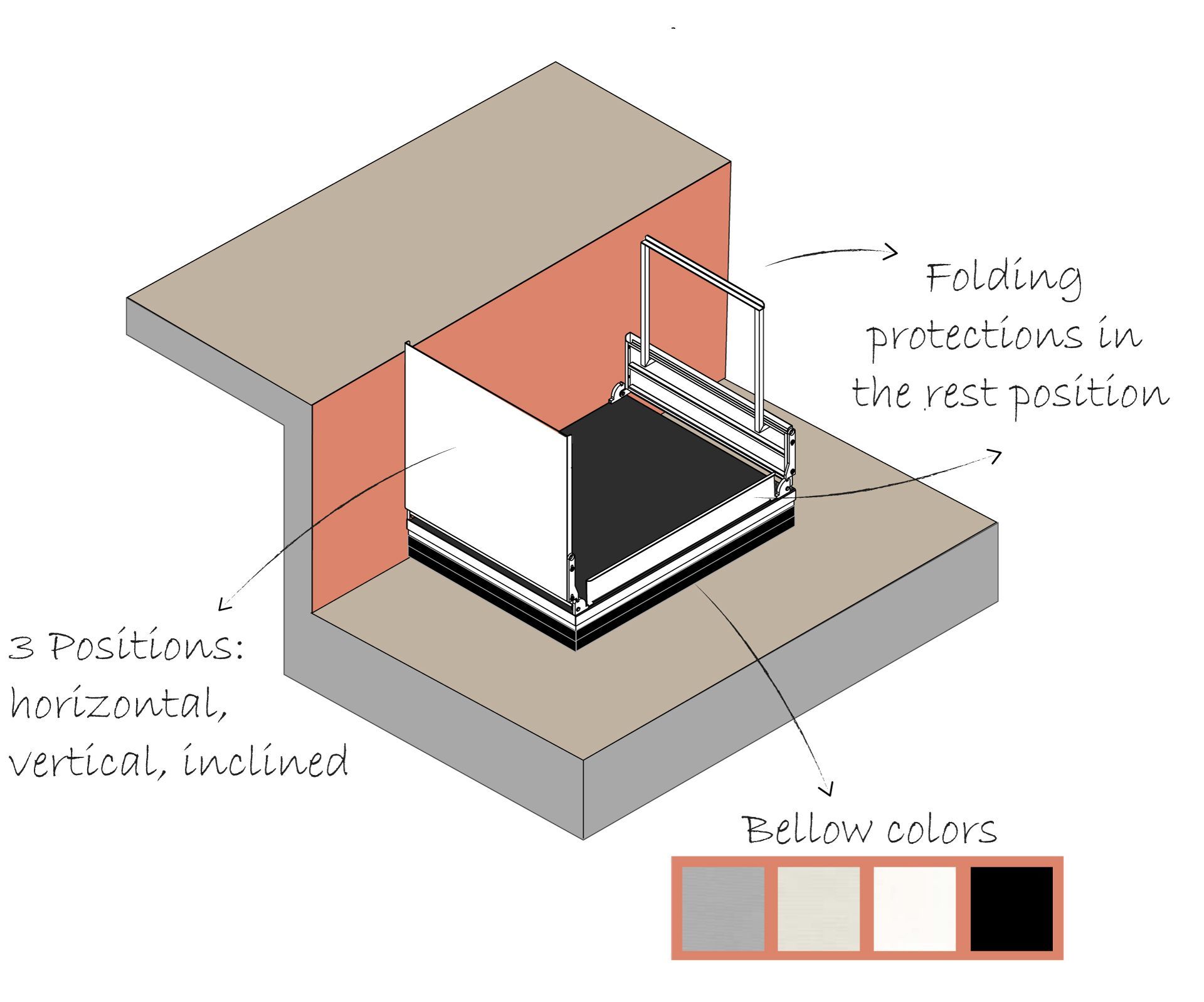

The Origami platform is equipped with folding anti-fall barriers on the platform which, just a few moves, can be manually oriented in the vertical anti-fall position (on three sides of the platform) and not only, the protection on the side corresponding to the lower access, flips over also in the inclined position to the ground to allow wheelcahir users access operations.

The Origami platform lift does not require a pit, the lifting system uses a pantograph with a closed height reduced to just 15cm, no need for handling, it takes up little space at the foot of the grandstand.

The bellows under the floor, with an anti-intrusion function and covering of the lifting system, is available in four color variants to better fit into the surrounding context.

Choose the Origami platform and let yourself be surprised by this brilliant solution

Functional and safe wheelchair platform lift, both in use and application.

A few simple steps to make more accessibile the stage of a theater, an auditorium.

Origami platform lift, style in the stands

Characteristics

Origami, created to acclaim

Basic equipment

Platform equipped with manually foldable anti-fall barriers to disengage the view of the audience when not in use.

Anti-fall barrier on the short side matching to the access to the lower floor, foldable even in the inclined position to facilitate embarking/disembarking manoeuvres.

Sensitive anti-crushing safety trip under the perimeter of the platform.

Simple and intuitive controls installed on a wall-mounted push-button panel with hold-to-run Ascent/Descent buttons.

Protective bellows under the platform on 4 sides.

Floor covering with non-slip rubber mat.

Separate electrical equipment housed in an IP55 wall-mounted box.

Separate control unit prearranged with 3 m long connection pipes.

Single pantograph lifting system, extra flat type with reduced minimum height.

Standard finish RAL9002

Technical data

Installation type:

On the floor

Rated load:

300kg

Platform dimensions:

1300x1000mm

Maximum height difference:

1030mm

Platform minimum height:

150mm

Platform dimensions closed in rest position:

1300 x 1000 xh 222 mm

Supply voltage:

230V Single-phase

Origami - Installation on the floor

Origami is the solution to allow acess to the scenes
Button
Origami - Platform lift with foldable protecion

Origami, a functional and safe solution to make more accessbile theatre stage
