Retractable platform lift for the disabled people

Platform lift for stair

Go over few steps without encumbrance after use

Italian design and production

Even in front of few steps, the accessibility and availability of spaces in one's home, in a public place or in a commercial activity can be severely limited.

Simple and safe system for overcoming a few steps without creating an obstacle after use, the platform lift with translatable top fits into environments with the least aesthetic impact, disappearing into the floor at the base of the staircase.

The liftable and horizontally mobile platform approaches the upper level floor to allow the operations of ascent and descent from the platform to be carried out in complete safety. The mobile edge with containment band function is activated during platform movements, only after using the platform does it align with the floor inside the housing pit, always leaving the passage free.

Ideal for small differences in level of 3 or 4 steps both indoors and outdoors.

BROCHURE

Choose the platform lift for steps, 100% safe for the user and for those who are nearby

When the installation of a stairlift or an inclined ramp, from a practical and aesthetic point of view, is inappropriate and bound to the architectural context of the project, the retractable platform is the right answer to the need for accessibility and consistency with style of the building.

Indoor and outdoor installation

Platform with translatable floor for the disabled

The platform lift with mobile top fits into environments with the least aesthetic impact, disappearing into the landing at the base of the staircase.
Button
Step platform lift- Indoor installation

The translatable surface of the platform lift for steps can be prepared for covering with the same flooring as the surrounding environment
Button
Platform with mobile top to safely overcome differences in height of 3 or 4 steps

The floor of the platform for steps, lifts and translates until it approaches the last step and allows the access to the platform
Button
The platform that fits into environments with the least aesthetic impact

The step platform, after use, disappears into the landing at the base of the stair
Button

Characteristics

Platform lift for steps, no encombrements on the ladder after use

Basic Equipment

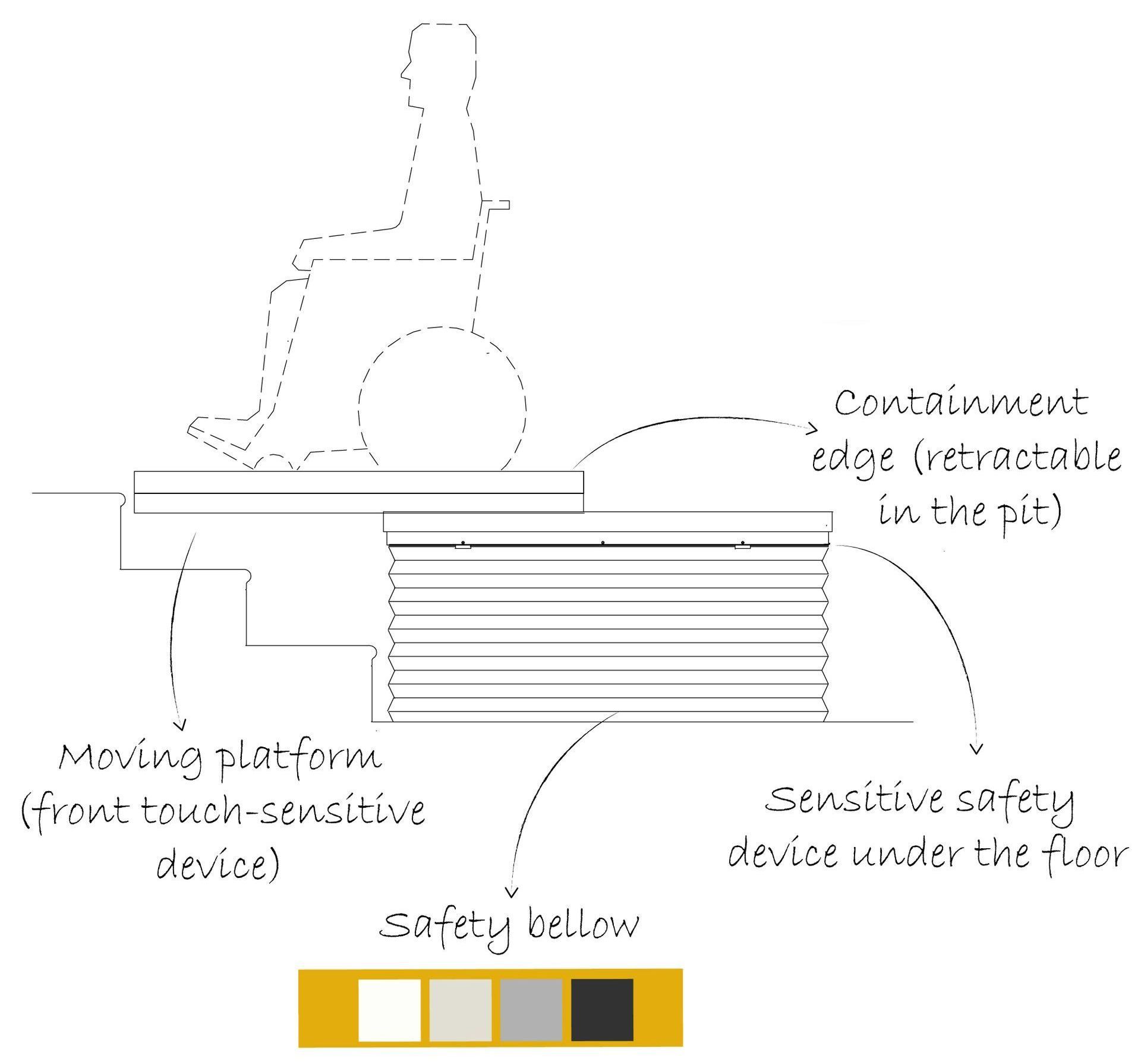

Platform with horizontal movement to overcome a few steps, arriving at the level of the upper landing.

Retractable edges with a height of 70 mm, are activated automatically on three sides of the translatable platform, forming a containment band during movements.

Hold to run type controls, on board Up and Down buttons on column, on floors Call and Return buttons on wall-mounted push-button panels.

Electrical equipment housed in a box designed for wall mounting.

Power unit built in ,for indoor installation.

Platform covering with rubber mat.

Fixed platform prepared with inspection trap door.

Sensitive anti-crushing trip under the perimeter of the fixed platform and on the front edge of the movable platform.

Emergency anti-blackout device with buffer battery, for recovery when descending.

Options

Post for landing push-button panels.

Platform set-up with fixed edge h. 15mm for the containment of the flooring.

Protective bellows under the platformon 4 sides

Wireless controls on board and on the floors, execution without column visible on the platform.

Execution for outdoor installation: separated power unit prepared with connection pipes (std distance m 3).

Custom finishes: RAL platform color of your choice, bellows color in the 4 available variants

Technical datas

Rated Load:

300kg

Platform dimensions:

1500x1000 mm

Max vertical travel:

500mm

Max horizontal travel:

700mm

Pit depth:

310mm

Feeding tension:

230 V Signlephase

Platform lift for wheelchair

With the steps platform lift you overcome unevenness up to 3 or 4 steps in complete safety and without any encumbrance on the stair after use.
Button
Wheelchair platform lift with translatable top

The step platform lift facilitates mobility and facilitates accessibility to spaces
Button
Lifting platform with translatable top

Overcome a few steps without obstruction and without hindrance after use

Button
Step platform lift with movable floor

After use the step platform lift forms a continuous plane with the pavement,
leaving free and usable space in front of the stair.
Button
Step platform lift

The platform lift for steps is equipped with a sliding surface that can be covered with flooring to better integrate with the surrounding environment.
