One of its kind
Italian design and production
Ideal for all those situations in which accessibility is strongly conditioned by the surrounding space, where the available space is limited or must in any case be usable for other uses.
Available in the fixed "Base" or mobile "Roll" version with frame on wheels.
MicroLevel allows you to overcome small differences in height and also provides a practical and convenient solution to the problem of accessibility in front of ATMs or vending machines.
Safety and reliability without encumbrance and without the need for structural interventions: the foldable platform in the rest position does not engage and does not get in the way thanks to the drastically reduced overall dimensions, battery operation does not require fixed electrical connections, a common socket is enough.
Choose MicroLevel,
safety and reliability without bulk and without the need for structural interventions
Practical system for overcoming small differences in height up to 80 cm without occupying or hindering the surrounding space.
Without pit, available in the fixed or mobile version with frame on wheels
Installation indoors or outdoors if protected
Characteristics
MicroLevel, versatile application in use and installation

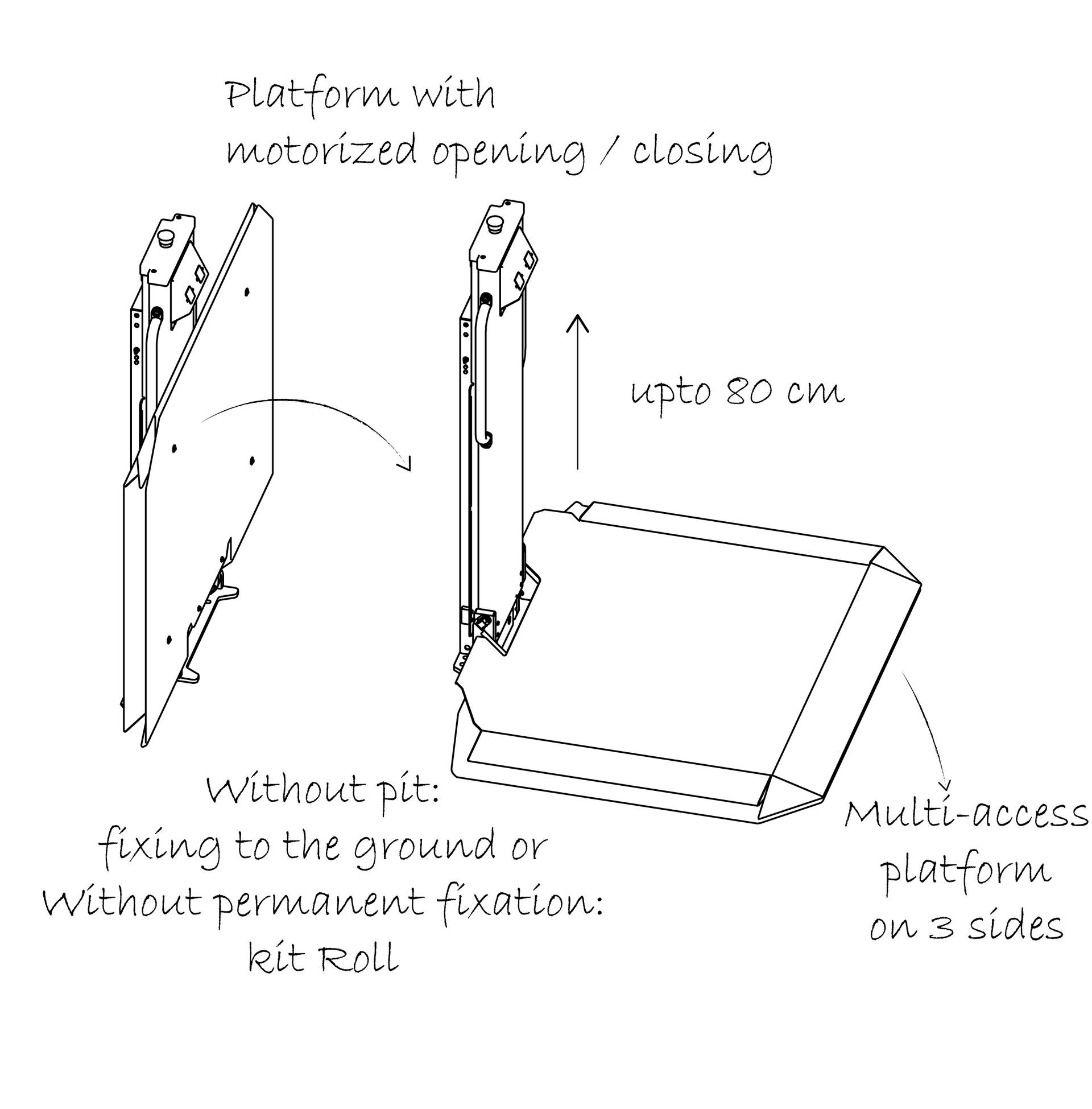

The opening and closing movements of the platform are, in the basic equipment, motorized and the drive can be easily activated in full autonomy through the wireless remote control.
The platform is shaped with accessible edges inclined on 3 sides, reversible to facilitate access maneuvers and improve connection to the floors.
In the basic version, MicroLevel is designed for anchoring to the floor, without a pit.
The lifting system and control equipment are integrated into the mast.
Immediately operational: the operation is battery.
Basic equipment
Double handle on the sides of the upright.
Platform emergency manual closing.
On/Off key switch.
Sensitive bottom under the platform, with anti-shock/anti-crushing safety functions during movement.
Hold to run type controls for Up/Down and Emergency, on board Comandi.
Wireless Open/Up and Down/Close commands operated by remote control.
Optional
Manual folding safety bar on the descent side.
Manual gate for access to the upper floor with single leaf in shatterproof glass that can be opened outwards with a 90° stop position. Equipped with electromechanical lock and electric consent to leave the floor only with the gate closed and mechanically locked.
Kit Roll: Manual trolley for handling, with base with telescopic arms, removable rudder with wheels and removable ramp.
Additional pushbutton panel on board with extendable cable.
Fixing frame for walling into the floor.
Technical Datas
Rated Load:
230kg
Usefull platform dimensions:
950x750mm
Encumbrance in closed position:
184 mm
Max. levels difference:
800mm
Feeding tension:
230 V Singlephase
Speed:
1,5 m/min
MicroLevel, ROLL Version
MicroLevel in the Roll version finds application in those situations in which the needs of use are occasional, or when the handling can allow its use in several contexts of small differences in level in the same environment.
The Roll Kit includes: manual trolley for handling with base with telescopic arms, removable drawbar with wheels and removable ramp.
The Roll version of the MicroElevator represents a valid alternative even in cases where the presence of fine flooring or underfloor heating does not make it feasible to build a pit to house a lifting platform, rather than fixing the basic version to the ground .
