Characteristics

Stairlift with platform, a challenge won every day

Basic equipment

Automatic connecting ramps with gripface surface, suitably sized to facilitate platform access operations.

Manually folding platform in the rest position, with non-slip walking surface.

Double barrier arm that can be manually folded into the rest position inside the platform.

On board controls for Ascent and Descent with continuous pressure, on pushbutton panel with extensible cable, which can also be used by the attendant on the ground.

Wireless landing push-button panels, with key enabling, on panels designed for wall mounting.

Acoustic and luminous movements signals on board

On/Off enabling switch with removable key and Mushroom shaped Stop switch on the machine body.

Battery operated 24V, with charging point at the end of the rail.

Safety sensors under the platform and on the machine body with anti-shock and anti-crushing function during movement.

Parachute device and speed limiter.

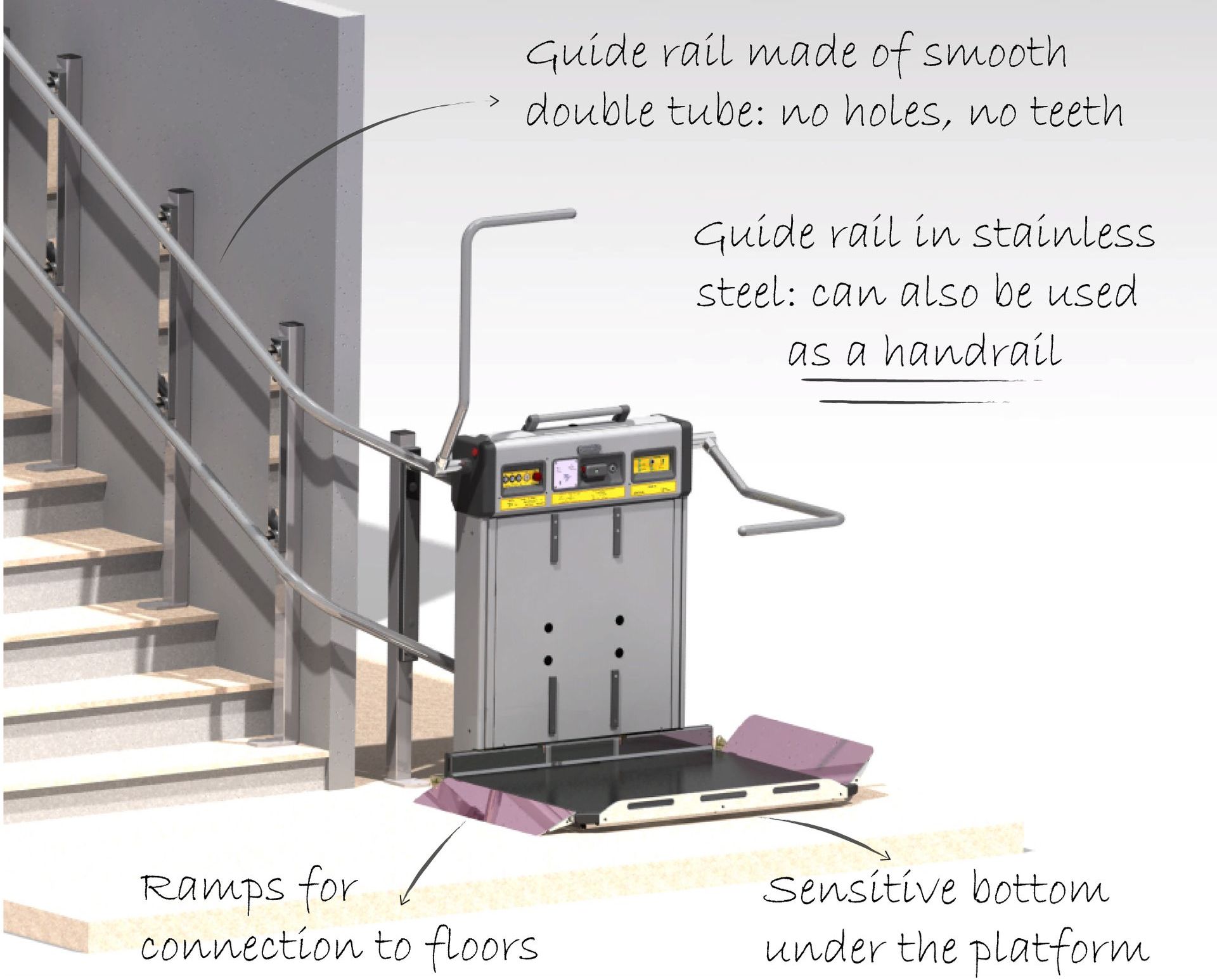

Double tube guide rail in stainless steel, smooth, without holes or teeth, which make it usable also as a handrail.

Options

Motorized platform and double handle, with Opening and Closing that can be easily activated from the landing push-button panels at the end of the travel.

Folding seat for seated persons.

Landing luminous movement indicators, which can be activated on request even during the opening and closing of the platform.

Main power supply kit for long travels.

Technical datas

Rated load:

250kg

Platform dimensions:

from 800x450 mm to 1000x800 mm

platform access:

Opposit or adjacent at 90°

Speed:

6 m/min with slowing down during turns

Feeding tension:

230V Singlephase
